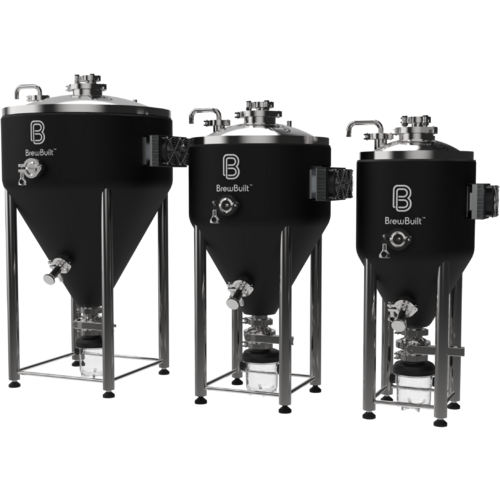

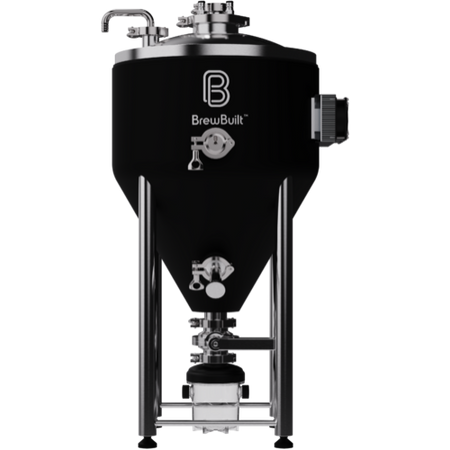

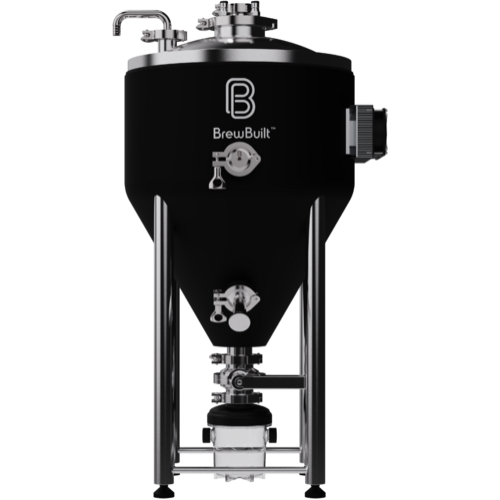

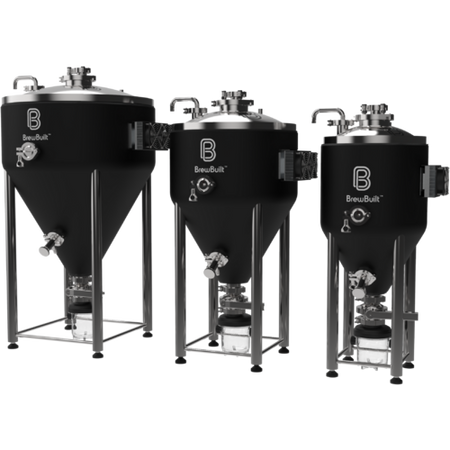

BrewBuilt® X1 Uni Pro Conical Fermenter | 14 gal.

The most advanced homebrewing fermenter, period. The BrewBuilt X1 Uni Pro features Peltier technology to maintain fermentation temperatures with the highest level of precision. This completely self-contained conical fermenter doesn't require the additional space or expense of a dedicated refrigerator or glycol chiller and is exceedingly simple to configure and operate.

If you plan to purchase a new fridge of glycol chiller to pair with an X1 Uni or Uni+, we highly recommend that you consider the Uni Pro! This unit may have a higher price tag, but you could save in the long run by not needing to buy any expensive appliances to handle temperature control!

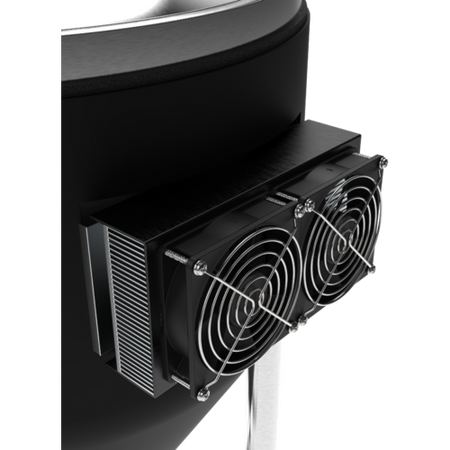

Peltier Technology
First discovered by Jean Charles Athanase Peltier in 1834, the "Peltier Effect" occurs when an electric current runs through a circuit of dissimilar conducting metals. This thermoelectric reaction that happens when the current passes from one metal to the other can produce either cold or heat depending on the direction the current is flowing. It wasn't until NASA began using this technology that it started to gain widespread use. Today, Peltier chips are commonly used in a variety of applications such as cooling computers and small refrigerators. BrewBuilt saw how this could be used for brewing applications, and they've been raising their glass to Jean Peltier ever since.

Precision Temperature Control

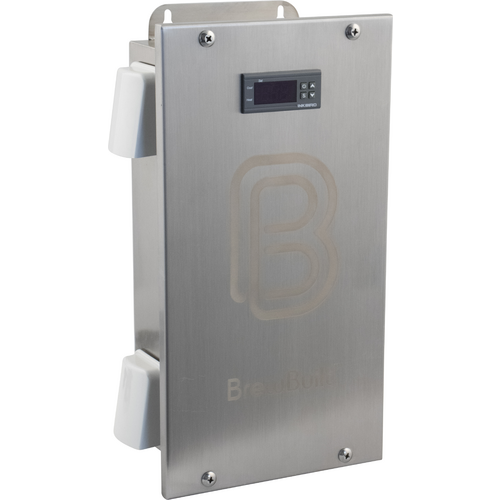

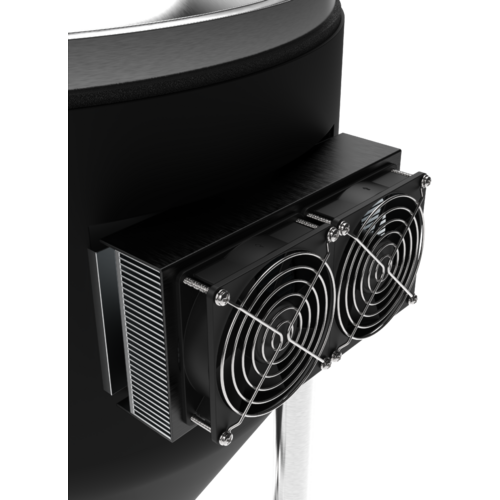

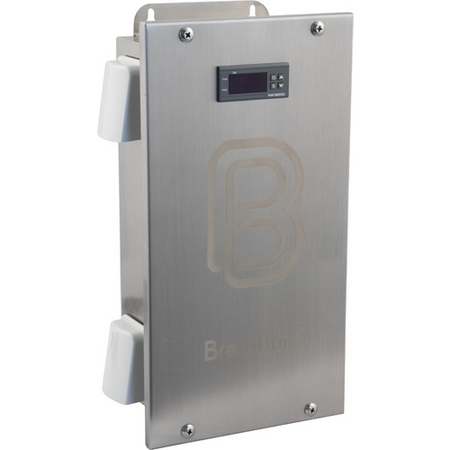

The X1 Uni Pro maintains fermentation temperatures using localized heating and cooling distribution. Peltier technology provides the cooling near the top of the conical where temperatures are hottest, and a very low watt density heating pad placed inside the neoprene jacket gently warms the unit from the bottom up. Cooling and heating are automatically turned on as needed via a stainless steel control box that can be mounted to your wall or hung from one of our custom-welded stands. Simply program your desired set point on the controller and sleep easy knowing the X1 Pro will keep your fermentation temp on target to within 1 degree of the set point. The X1 Pro's ability to provide both cooling and heating means your fermentation will maintain the perfect temperature from beginning to end, providing cooling during the vigorous active fermentation phase, and providing heat to maintain the set temp when yeast activity ramps down. Note: We employ a very low watt density heater to protect your beer from the off flavors that can be created by heating the settled yeast at the end of fermentation. We will be releasing a stronger heater in Fall 2021 for rapidly changing temperatures.

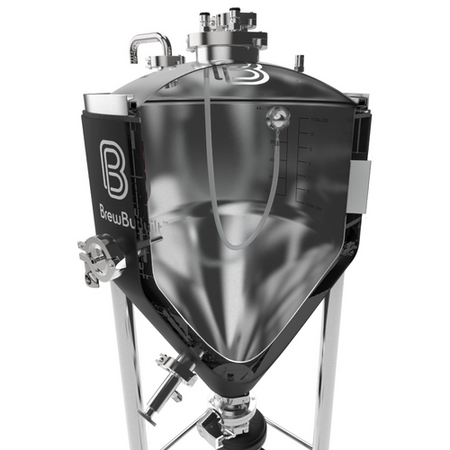

The custom-sewn jacket features dual-layer insulation, with an inner layer of closed-cell, fiber-free elastomeric thermal insulation and an additional layer of durable neoprene. This allows for exceptional cooling and heating efficiency, enabling the X1 Pro to maintain fermentation temperatures at up to 30°F below ambient temperature. The X1 Pro models will easily maintain ale temperatures in 80°F environment and lager temperatures in a 70°F environment. Note that this is for fermentation temperatures and that the differential you can achieve goes down as the ambient temperature goes down.

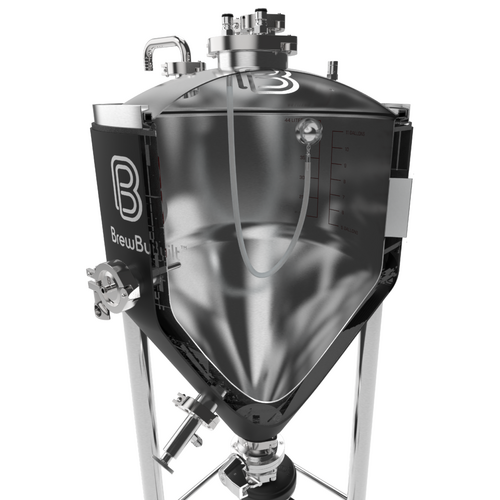

We guarantee that you will love the fit and finish of our X1 Uni Conical. Made entirely of 304 stainless steel, the quality exceeds what has previously been done in brewing applications and approaches the level of pharmaceutical-grade finish. With flawless welds and a dazzling mirror-polish finish inside and out, the X1 Uni is easy to sanitize and even easier on the eyes. You’ll probably wanna snap a pic. #BrewBuilt

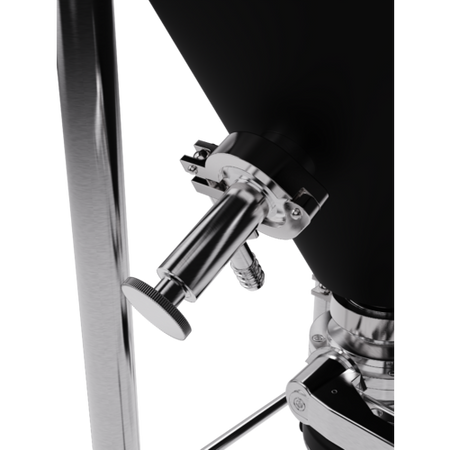

Extra Large 2” T.C. Dump Valve

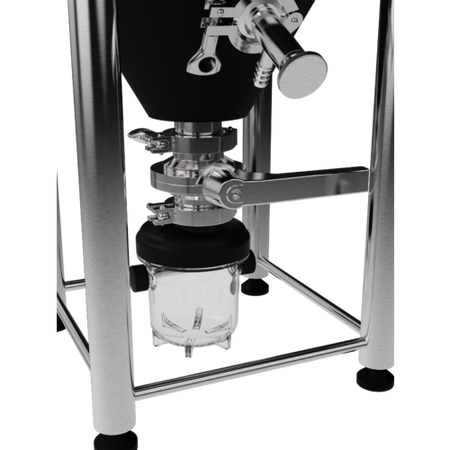

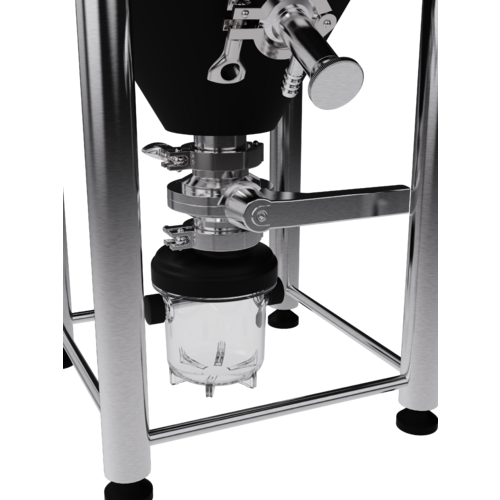

Dry hop to your heart's desire. Try as they might, hopheads will have a hard time clogging this conical. With an oversized 2" bottom port, you’ll have all the clearance you need (and even more than some pro brewers) to drop out your dry hop additions with ease. The slick mirror-polish finish on the inside allows flocculating yeast to collect neatly at the bottom of the cone as they slide right down the smooth interior walls. The butterfly dump valve integrates perfectly with included Flex Chamber Trub Separator and Yeast Harvester.

Reinforced Four-Leg Foundation
There’s a common complaint seen in the feedback for other conicals on the market—the tippiness of three-legged units. Three legs may be fine when the fermenter is sitting still on an even surface, but users are often forced to purchase a bracing shelf for more stability if they add casters or leg extensions. A conical is only as worthy as it’s foundation, so BrewBuilt modeled the X1 after professional-level brewery tanks with a four-leg, reinforced base. This seemingly small design feature is more expensive to produce, but it's what makes the X1 conical exceedingly stable when compared to other models.  When you fill up your fermenter with delicious fresh wort, you want to trust the vessel that’s holding your latest creation. Brewers shouted from the mountaintop that they wanted stronger, sturdier legs right out of the box that don’t require an additional bracing shelf. The four-leg, welded-bar reinforced system is absolutely rock solid. This is an especially critical feature if you plan to add rolling casters so can easily glide the fermenter around your brewery.

The reinforced four-leg design not only increased the stability and strength of the conical, it also allowed us to extend it upwards, thereby eliminating the need for extensions in almost every situation. An elbow, a sight glass, or the Flex Chamber can be mounted under the unit with room to spare.

Adjustable Feet
The X1 Uni comes standard with thread-in adjustable feet. If your home brewery has uneven flooring, you can quickly and easily level out the fermenter. The feet can be swapped out with our high-quality casters at any time.

Optional Equipment

• BrewBuilt Kit for Fermetning Under Pressure (Optional Kit is Required to Ferment Under Pressure)
  The Pressure Relief Valve (PRV) that comes with the conical is not sufficient for fermentation as it can become clogged with Krausen. To ferment under pressure the Pressure Fermentation Kit is required. This no-compromises kit includes the same hardware you will find on a commercial unitank, including a dedicated pro level spunding valve, a sealed pressure gauge, and a dedicated commercial PRV. Read more about these key hardware features in the kit copy. Also included is liquid Foam-Axe which helps reduce Krausen. Fermenting under pressure will reduce esters and fusel alcohol production, and enable you to ferment lagers at ale fermentation temperatures. Please read and follow all special instructions that come with the kit as well as your instruction manual.
• Hop Bong Oxygen-Free Dry Hopping Device
  The Hop Bong is a versatile pressurizable tri-clamp accessory that is perfect for purging oxygen from your dry hops before dropping them into your fermenter. Load up the Hop Bong, flush it with CO2, purge out oxygen with the handy PRV on top, then simply open the Butterfly Valve to inject your beer with a 6 oz payload of dry hops.

Other Features You’ll Love:

• Downward-facing Blowoff U Barb prevents blow off tubing from kinking and is much easier to remove and clean than a fixed stainless blow off
• Internally etched volume markers in gallons and liters

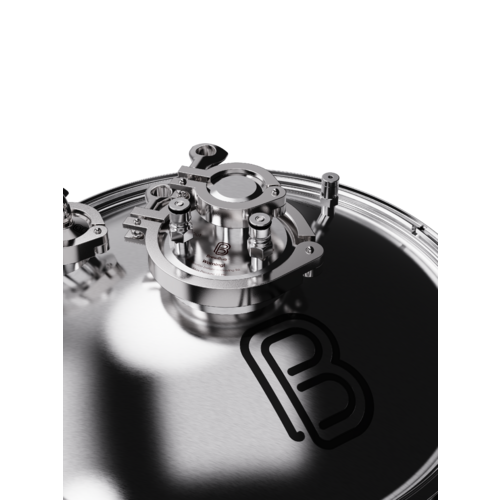

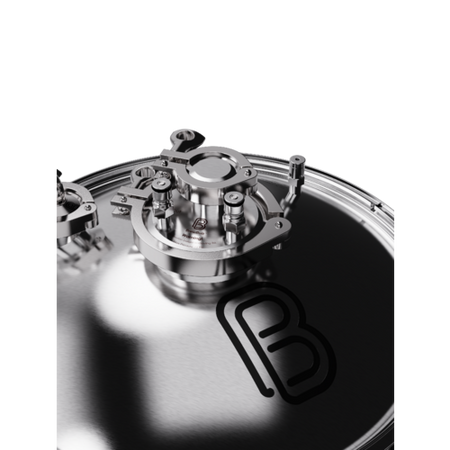

• Stainless steel lid clamp with single-piece molded silicone gasket
• Optional Heavy-Duty Rolling Casters
• Optional Pressure Fermentation Kit

Installation Note: The Pressure Pack's Clear Float floating dip tube is sized to fit all models of the BrewBuilt Conical. Depending on the size of your fermenter, you may need to shorten the silicone tube for better performance. When installed on your empty fermenter, you ideally want the dip tube to hang freely with just enough length for the end of the dip tube to touch the bottom of the tank.
