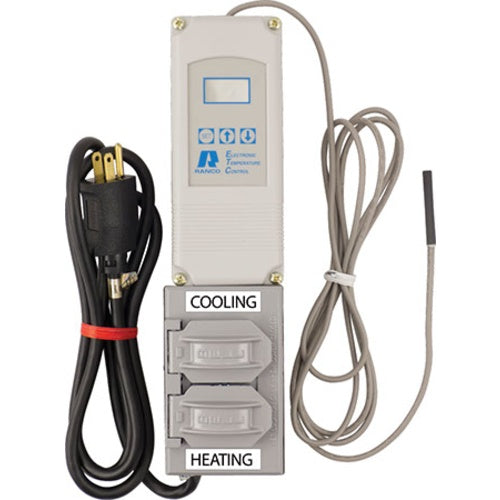

Ranco Digital Temperature Controller (Two-Stage) - Wired

Now you can precisely control the temperature of your fermentation, both heating and cooling with this 2 stage temperature controller.

To control ferment temperatures you can place the probe inside the space that is being cooled or heated (often a refrigerator) or you can place the probe directly into the ferment using our Stopper Themowell, FE624. You can set up all your temperature control needs to do cooling and heating mode directly from the digital control panel.  Please look for our video tab to watch an easy to follow guide to programing them.  When in cooling mode, and hooked up to a refrigerator or other cooling device, the controller turns the compressor on when the ambient temperature rises above your set point. When in heating mode and hooked up to our FermWrap (preceeding page) the controller turns on the heater when the temperature drops below your set point. A FermWrap around a fermenter or inside a unplugged refrigerator can be the ideal solution for those cold winter ferments. To control a pump when mashing you would install a thermowell in your mashtun. This can be done in our welding shop or, if you have a coupler in your kettle, you can install our Coupler Thermowell, FE622.

The unit features an adjustable differential down to within one degree in both heating and cooling modes. This means you can precisely control an environment to within one degree of your set point.

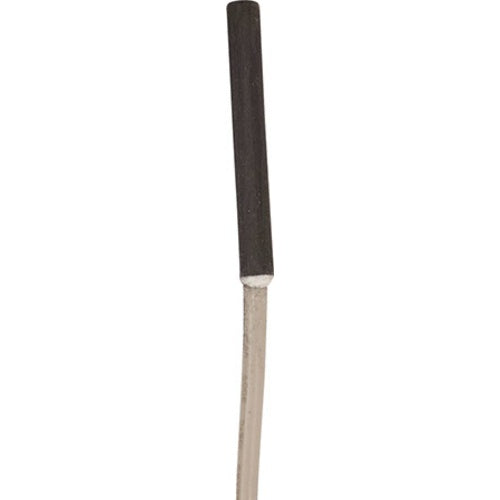

The included sensor probe monitors the temperature while the digital readout displays it in either Fahrenheit or Celsius. The sensor probe is 1/4 in diameter and works well with the Stopper or Coupler Thermowells. Temperature Range of -30 to 220F.

We also use this digital controller in conjunction with our stainless steel conical fermenters and Brewing Sculptures. With the fermenters it monitors and regulates our electronic cooling units through a thermowell that is permanently installed in the side. With the Brewing Sculptures it can monitor and regulate Mash and Hot Liquor tank temperatures by turning pumps on and off.

Ranco base Model # ETC-112000-000.

This controller has two sets of contacts the Normally Open contact is rated at:

115 Volts 208/240 Volts

Full-Load Amps 16 Amps 8 Amps
Locked Rotor Amps 96 Amps 48 Amps
Ressistive Amps 15 Amps 8 Amps
Horsepower 1 hp 1 hp


The Normally Closed contact is rated at:

115 Volts 208/240 Volts
Full-Load Amps 5.8 Amps 2.9 Amps
Locked Rotor Amps 34.8 Amps 17.4 Amps
Ressistive Amps 5.8 Amps 2.9 Amps
Horsepower 1/4 hp 1/4 hp
