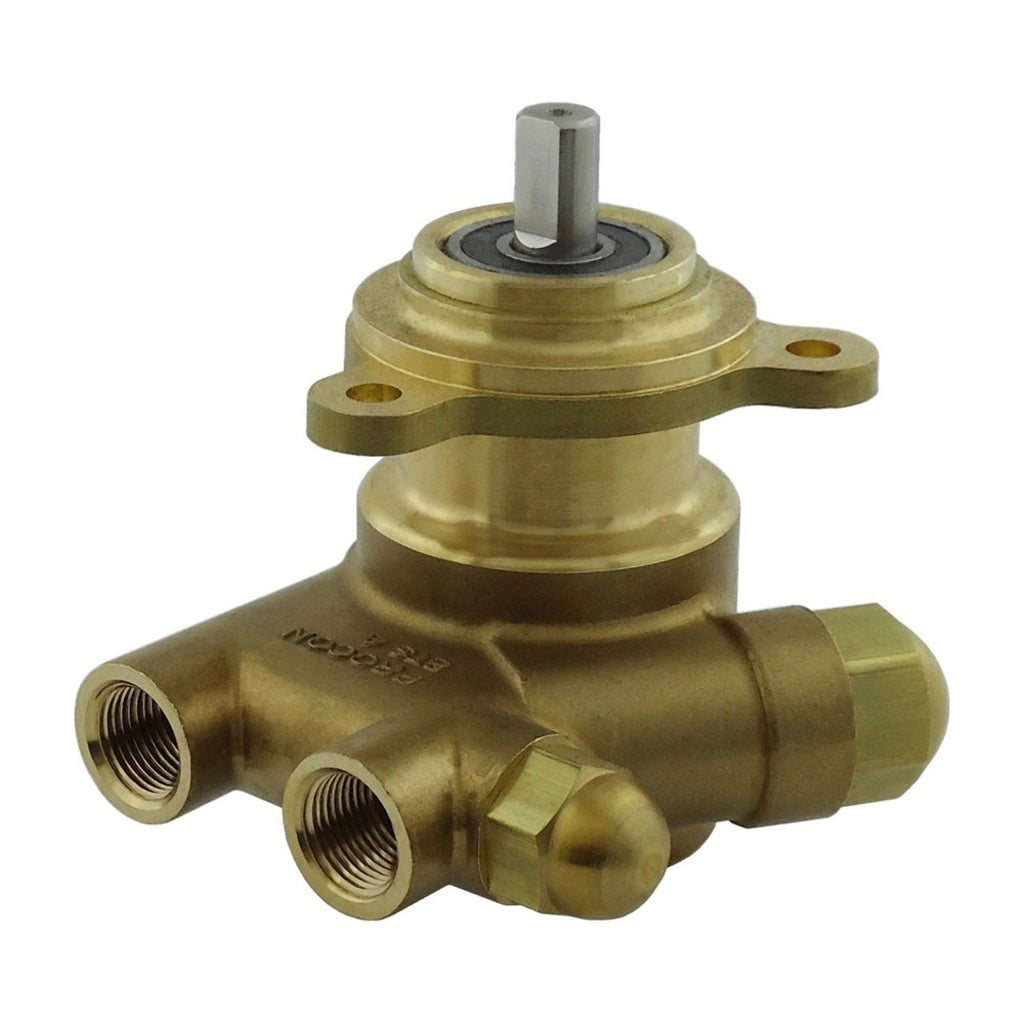

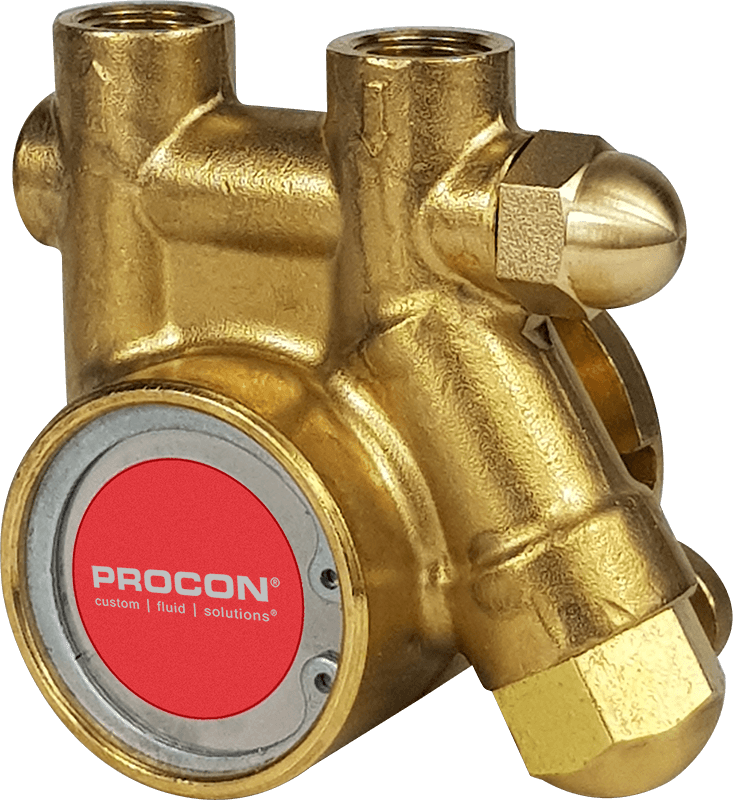

Procon® 101E070R11BC Series 1 Rotary Vane Fluid Pump w/ Strainer - 70GPH (210LPH), Fluorocarbon, Standard-Non
More from: Procon
Regular price
$94.43
Regular price
Cyber Deal 20% OFF
$118.04
Sale price
$94.43
Need Sales Support?
Quick Overview
- Consistent flow rate across variable pressures
- Self-priming (water) and maintenance-free with low vibration and pulsation characteristics
- Internal Relief Valve Standard-Non External adjust configuration
- Integral Strainer for debris removal from pumping fluid
- Brass Housing Material
- NPT 3/8" Inlet and Outlet Connections
- Constructed with Fluorocarbon Elastomers
- Flowrate of 70GPH (210LPH)*
- Fluid Operating Temperature of between -4°F to 160°F (-20°C to 71°C)
- Maximum Mechanical Horsepower required 0.37hp (276W)¹
* GPH rating at 1725RPM/60Hz and LPH rating at 1450RPM/50Hz
¹ Mechanical Horsepower requirement based on pump tested with water at room temperature and maximum operating pressure 250psi (17.5BAR)
Product Overview
With a 70 GPH flow rate, the Procon® 101E070R11BC Series 1 pump features a strainer for optimal fluid cleanliness. This pump is engineered for dependability and purity, ideal for applications requiring the removal of particulates.
| Technical Information | Details |
|---|---|
| Material | Brass |
| Port Hole | NPT 3/8" |
| Integrated Strainer | Yes |
| Mounting Type | Bolt-On |
| Drive Configuration | Single Flat |
| Flowrate (GPH) | 70GPH |
| Flowrate (LPH) | 210LPH |
| Elastomer | Fluorocarbon |
| Seal Type | Non Balances Ceramic/Carbon |
| Rotation | Clockwise |
| Internal Component Material | Carbon |
| Valve Type | Solid- Ultem |
| Valve Configuration | Standard-Non External adjust |
| Product Weight | 2.7lb (1.23Kg) |
| Operating Range |
Details |
| Maximum Mechanical Power Requirement | 0.37hp (276W) |
| Maximum Operating Pressure | 60psi |
| Relief Valve Set Pressure Range | 60 to 99psi (4 to 7 BAR) |
| Max Static Pressure PSI | 100psi |
| Min Operation Fluid Temperature | -4°F |
| Max Operation Fluid Temperature | 160°F |
| Max Fluid Viscosity | 100cP |
| Max Sound Level | 60dB(a) |
| Max Discharge Pressure | 250psi |
| Min Speed | 1000RPM |
| Max Speed | 2400RPM |
| Dry Suction Lift | 3.3ft |
| Wet Suction Lift | 6.6ft |
| Fluid Acidity | 6pH |
| Maximum Total Dissolved Solids (TDS) | 5000ppm |
