- Part number AR-10000-P
- For ice machines up to 600 lb per day
- 15,000 gal, 0.5 micron
- Replacement cartridge K00493
- NSF/ANSI 42, 53 and 372 certified
- Genuine Manitowoc
Request a quote
Need a custom build, freight order, or just want pricing in writing before you order? Quotes back within 24 hours.
What it is

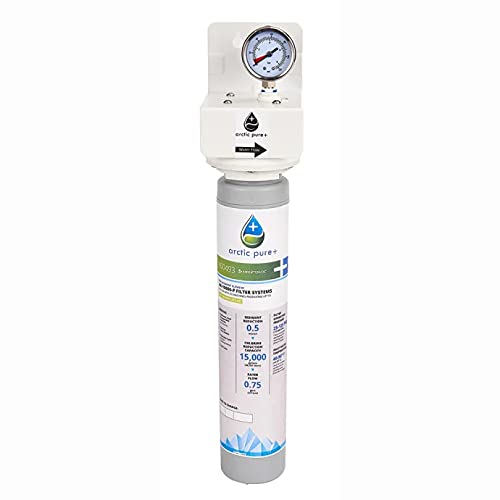

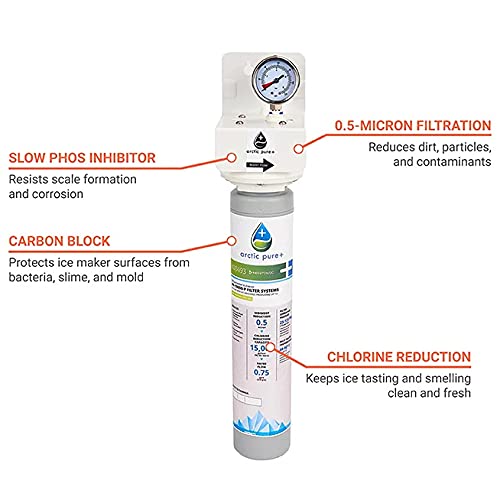

The Manitowoc AR-10000-P is an Arctic Pure Plus single primary water filter assembly for ice machines making up to 600 lb of ice per day. It is rated for 15,000 gallons of chlorine reduction at 0.5 micron. It comes with the head, shroud, mounting hardware and one cartridge.
Fits
Manitowoc spec sheet 7805B lists it for models making 0 to 600 lb per day. KaTom lists IT0300 through IT0750 cubers, the IBF0620, RFP0320A, RNF320 and undercounter cuber, flaker and nugget models.
Before you order
The replacement cartridge is K00493. Manitowoc lists a maximum service flow of 0.75 gpm and an operating pressure of 35 to 125 psi.
Specifications
| Brand | Manitowoc |
|---|---|
| Part number | AR-10000-P |
| Product type | Water filter assembly |
| Capacity | 15,000 gal chlorine reduction |
| Filtration | 0.5 micron |
| Max service flow | 0.75 gpm |
| Operating pressure | 35 to 125 psi |
| Ice production | Up to 600 lb per day |
| Replacement cartridge | K00493 |
| Certifications | NSF/ANSI 42, 53, 372; CSA B483.1 |
| Warranty | 3 years parts and labor on head, shroud, hardware (cartridge excluded) |
Frequently asked questions
What cartridge does the AR-10000-P use?
K00493, per Manitowoc spec sheet 7805B.
What size ice machine is it for?
Manitowoc lists it for ice machines making 0 to 600 lb of ice per day.
What is included?
The head, shroud, mounting hardware and one cartridge, per KaTom.
Is this a genuine Manitowoc part?
Yes. It is a genuine Manitowoc part. Every Manitowoc part Howdy Brewer sells is sourced through authorized OEM channels and ships with the manufacturer's standard parts warranty.
